MTU Series Generator
Diesel Generator
PowerRange:250KVA-3000KVA
Related Presentations
MTU Series Generator Set
The MTU history can be traced back to the 18th century. With the excellent and advanced technology, the MTU engine is one of the best quality products in the world. The MTU range diesel generators mainly power from 275kva to 3000kva(50HZ), 344kva to 3438KVA (60HZ),The diesel generator sets is mainly aimed at industries, mining, telecommunications, hotel, banks, agriculture, sea ports, military application etc. They are very compact and competitive. They usually work as the main source of supply in an installation where there is no main electricity or it’s too week.

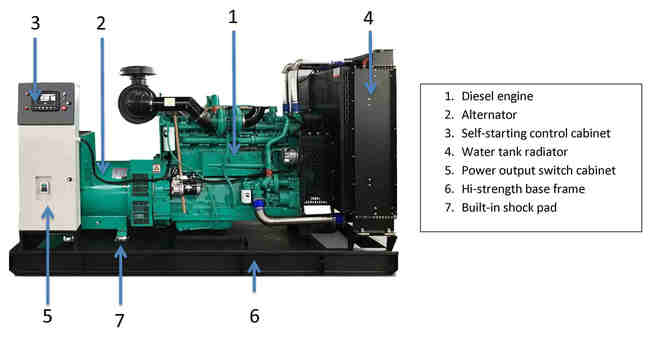

1. Powered by MTU Diesel engine
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway,
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system, ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard.
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE
MTU, 50HZ
MTU,60HZ
The MTU history can be traced back to the 18th century. With the excellent and advanced technology, the MTU engine is one of the best quality products in the world. The MTU range diesel generators mainly power from 275kva to 3000kva(50HZ), 344kva to 3438KVA (60HZ),The diesel generator sets is mainly aimed at industries, mining, telecommunications, hotel, banks, agriculture, sea ports, military application etc. They are very compact and competitive. They usually work as the main source of supply in an installation where there is no main electricity or it’s too week.
1. Powered by MTU Diesel engine
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway,
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system, ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard.
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE
MTU, 50HZ
|
Genset Model |
Prime power/ Standby power |
Engine model |
Fuel consumption (g/kw.h) |
Cylinder |
Displacement (L/h) |
Genset Dimension (mm) |
Weight (kg) |
|
| KVA | KW | |||||||
| KGU250 | 250/275 | 200/220 | 6R1600G10F | 196 | 6L | 10.5 | 3000x1335x1880 | 2795 |
| KGU280 | 280/308 | 224/246 | 6R1600G20F | 195 | 6L | 10.5 | 3000x1335x1880 | 2795 |
| KGU350 | 350/385 | 280/308 | 8V1600G10F | 210 | 8V | 14 | 3000x1590x1940 | 3570 |
| KGU380 | 380/418 | 304/334 | 8V1600G20F | 193 | 8V | 14 | 3000x1590x1940 | 3570 |
| KGU440 | 440/484 | 352/387 | 10V1600G10F | 191 | 10V | 17.5 | 3100x1600x2000 | 4065 |
| KGU500 | 500/550 | 400/440 | 10V1600G20F | 190 | 10V | 17.5 | 3100x1600x2000 | 4065 |
| KGU580 | 580/638 | 464/510 | 12V1600G10F | 192 | 12V | 21 | 3400x1600x2000 | 4536 |
| KGU650 | 650/715 | 520/572 | 12V1600G20F | 192 | 12V | 21 | 3400x1600x2000 | 4536 |
| KGU650-II | 650/715 | 520/572 | 12V2000G25 | 203 | 12V | 23.88 | 3700x1750x2200 | 5440 |
| KGU800 | 800/880 | 640/704 | 12V2000G65 | 202 | 12V | 23.88 | 4000x1750x2200 | 6190 |
| KGU900 | 900/990 | 720/792 | 16V2000G25 | 198 | 16V | 31.84 | 4400x1750x2200 | 7090 |
| KGU1000 | 1000/1100 | 800/880 | 16V2000G65 | 198 | 16V | 31.84 | 4400x1750x2200 | 7250 |
| KGU1137 | 1137/1250 | 910/1001 | 18V2000G65 | 202 | 18V | 35.82 | 4600x2000x2500 | 8000 |
| KGU1250 | 1250/1375 | 1000/1100 | 12V4000G21R | 186 | 12V | 48.7 | 5800x2100x2500 | 11660 |
| KGU1400 | 1400/1540 | 1120/1232 | 12V4000G23R | 188 | 12V | 48.7 | 5800x2100x2500 | 12210 |
| KGU1650 | 1650/1815 | 1320/1452 | 12V4000G23 | 189 | 12V | 57.2 | 5800x2100x2500 | 12210 |
| KGU1812 | 1812/1993 | 1450/1595 | 12V4000G63 | 193 | 12V | 57.2 | 5800x2100x2500 | 12450 |
| KGU2063 | 2063/2269 | 1650/1815 | 16V4000G23 | 192 | 16V | 76.3 | 6400x2600x2700 | 14400 |
| KGU2250 | 2250/2475 | 1800/1980 | 16V4000G63 | 191 | 16V | 76.3 | 6600x2600x2700 | 14930 |
| KGU2500 | 2500/2750 | 2000/2200 | 20V4000G23 | 195 | 20V | 95.4 | 8000x2600x2700 | 17420 |
| KGU2750 | 2750/3025 | 2200/2420 | 20V4000G63 | 193 | 20V | 95.4 | 8000x2600x2700 | 17600 |
| KGU3000 | 3000/3300 | 2400/2640 | 20V4000G63L | 192 | 20V | 95.4 | 7500x2600x2700 | 18100 |
MTU,60HZ
|
Genset Model |
Prime / Standby power |
Engine model |
Fuel consumption (g/kw.h) |
Cylinder | Displacement(L/h) |
Genset Dimension (mm) |
Weight (kg) |
|
| KVA | KW | |||||||
| KGUS312 | 312.5/343 | 250/275 | 6R1600G10S | 196 | 6L | 10.5 | 3000x1335x1880 | 2795 |
| KGUS350 | 350/385 | 280/308 | 6R1600G20S | 195 | 6L | 10.5 | 3000x1335x1880 | 2795 |
| KGUS417 | 417/458 | 334/367 | 8V1600G10S | 210 | 8V | 14 | 3000x1590x1940 | 3570 |
| KGUS450 | 450/495 | 360/396 | 8V1600G20S | 193 | 8V | 14 | 3000x1590x1940 | 3570 |
| KGUS581 | 581/639 | 465/511 | 10V1600G20S | 190 | 10V | 17.5 | 3100x1600x2000 | 4065 |
| KGUS630 | 630/692 | 504/554 | 12V1600G10S | 192 | 12V | 21 | 3400x1600x2000 | 4536 |
| KGUS690 | 690/759 | 552/607 | 12V1600G20S | 192 | 12V | 21 | 3400x1600x2000 | 4536 |
| KGUS793 | 793/872 | 635/698 | 12V2000G45 | 203 | 12V | 23.88 | 3700x1750x2200 | 5440 |
| KGUS900 | 900/990 | 720/792 | 12V2000G85 | 202 | 12V | 23.88 | 4000x1750x2200 | 6190 |
| KGUS1031 | 1031/1134 | 825/907 | 16V2000G45 | 198 | 16V | 31.84 | 4400x1750x2200 | 7090 |
| KGUS1137 | 1137/1251 | 910/1001 | 16V2000G85 | 198 | 16V | 31.84 | 4400x1750x2200 | 7250 |
| KGUS1343 | 1343/1477 | 1075/1182 | 18V2000G85 | 202 | 18V | 35.82 | 4600x2000x2500 | 8000 |
| KGUS1750 | 1750/1925 | 1400/1540 | 12V4000G43 | 188 | 12V | 57.2 | 5800x2100x2500 | 12210 |
| KGUS2037 | 2037/2241 | 1630/1793 | 12V4000G83 | 189 | 12V | 57.2 | 5800x2100x2500 | 12210 |
| KGUS2362 | 2362/2598 | 1890/2079 | 16V4000G43 | 195 | 16V | 76.3 | 8000x2600x2700 | 17420 |
| KGUS2662 | 2662/2928 | 2130/2343 | 16V4000G83 | 195 | 16V | 76.3 | 8000x2600x2700 | 17420 |
| KGUS2875 | 2875/3162 | 2300/2530 | 20V4000G43 | 193 | 20V | 95.4 | 8000x2600x2700 | 17600 |
| KGUS3181 | 3181/3499 | 2545/2799 | 20V4000G83 | 193 | 20V | 95.4 | 8000x2600x2700 | 17600 |
| KGUS3512 | 3512/3863 | 2810/3091 | 20V4000G83L | 192 | 20V | 95.4 | 7500x2600x2700 | 18100 |
