Mitsubishi Generator
Diesel Generator
PowerRange:625KVA-200KVA
Related Presentations

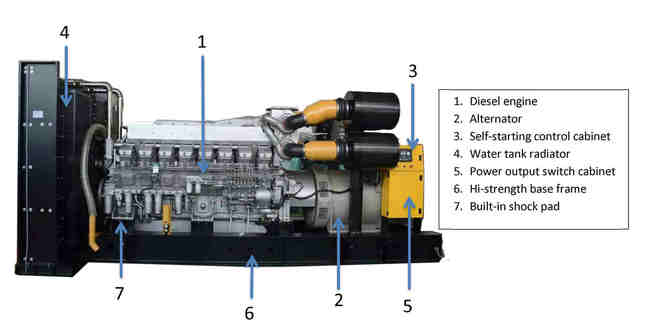

Mitsubishi Series Generator Set
Shanghai Mitsubishi heavy engine co., LTD. is a joint venture between Japan's Mitsubishi heavy industry co., LTD and Shanghai diesel engine co., LTD. The company mainly produce Mitsubishi heavy industries of large and medium-sized engine and the every technology, production, and quality standard is synchronize with Mitsubishi Japan heavy industries.
1. Powered by MITSUBISHI Diesel engine
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway,
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system, ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard.
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE
Mitsubishi 50HZ
Mitsubishi 60HZ
Shanghai Mitsubishi heavy engine co., LTD. is a joint venture between Japan's Mitsubishi heavy industry co., LTD and Shanghai diesel engine co., LTD. The company mainly produce Mitsubishi heavy industries of large and medium-sized engine and the every technology, production, and quality standard is synchronize with Mitsubishi Japan heavy industries.
1. Powered by MITSUBISHI Diesel engine
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway,
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system, ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard.
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE
Mitsubishi 50HZ
|
Genset Model |
Prime / Standby power |
Engine model |
Fuel consumption L/h |
Cylinder |
Displacement (L) |
Genset Dimension (mm) |
Weight (kg) |
|
| KVA | KW | |||||||
| KGM625 | 625/687.5 | 500/550 | S6R-PTA | 29.96 | 6L | 124 | 3635x1460x1720 | 4619 |
| KGM650 | 650/715 | 520/572 | S6R2-PTA-C | 29.96 | 6L | 124 | 3800x1410x2150 | 5100 |
| KGM675 | 675/742 | 540/594 | S6R2-PTA | 29.96 | 6L | 124 | 3800x1410x2150 | 5100 |
| KGM750 | 750/825 | 600/660 | S6R2-PTAA-C | 29.96 | 6L | 158 | 4000x1700x2000 | 5580 |
| KGM1250 | 1250/1375 | 1000/1100 | S12R-PTA-C | 49.03 | 12V | 247 | 4600x1700x2400 | 7820 |
| KGM1375 | 1375/1500 | 1100/1200 | S12R-PTA2-C | 49.03 | 12V | 272 | 4600x1700x2400 | 8160 |
| KGM1500 | 1500/1650 | 1200/1320 | S12R-PTAA2-C | 49.03 | 12V | 331 | 4700x2100x2610 | 10480 |
| KGM1700 | 1700/1875 | 1360/1500 | S16R-PTA-C | 65.37 | 16V | 370 | 5600x2600x3100 | 12540 |
| KGM1875 | 1875/2063 | 1500/1650 | S16R-PTA2-C | 65.37 | 16V | 408 | 5600x2600x3100 | 12540 |
| KGM2000 | 2000/2200 | 1600/1760 | S16R-PTAA2-C | 65.37 | 16V | 441 | 5950x2450x3050 | 14500 |
Mitsubishi 60HZ
|
Genset Model |
Prime / Standby power |
Engine model |
Fuel consumption L/h |
Cylinder |
Displacement (L) |
Genset Dimension (mm) |
Weight (kg) |
|
| KVA | KW | |||||||
| KGMS675 | 675/742 | 540/594 | S6R-PTA | 29.96 | 6L | 139.7 | 3635x1460x1720 | 4619 |
| KGMS1000 | 1000/1100 | 800/880 | S12H-PTA | 49.03 | 12V | 241.1 | 4370x2100x2200 | 8400 |
| KGMS1140 | 1140/1255 | 912/1004 | S12H-PTA | 49.03 | 12V | 241.1 | 4370x2100x2200 | 8400 |
| KGMS1375 | 1375/1512 | 1100/1210 | S12R-PTA | 49.03 | 12V | 282.2 | 4600x2100x2450 | 9370 |
| KGMS1535 | 1535/1688 | 1228/1350 | S12H-PTA2 | 49.03 | 12V | 325.4 | 4700x2100x2610 | 10480 |
| KGMS1690 | 1690/1860 | 1352/1487 | S12R-PTAA2 | 49.03 | 12V | 351.3 | 5000x2200x3000 | 11450 |
| KGMS1815 | 1815/2000 | 1452/1600 | S16R-PTA | 65.37 | 16V | 386 | 5450x1820x2800 | 12300 |
| KGMS2045 | 2045/2250 | 1636/1800 | S16R-PTA2 | 65.37 | 16V | 435.2 | 5600x2600x3100 | 12540 |
| KGMS2275 | 2275/2502 | 1820/2002 | S16R-PTAA2 | 65.37 | 16V | 469 | 5950x2450x3050 | 14500 |
