Doosan Generator
Diesel Generator
PowerRange:15KVA-750KVA
Related Presentations
Doosan Series Generator Set
DOOSAN Group founded in 1896 is one of the largest consortium in Korean currently.Doosan Engine is established after the acquisition of Daewoo Integrated Machinery Co., Ltd in 2005, named Doosan Engineering Machinery, and continue todevelop and launch a new generation product with first class and reliable performance base on the original Daewoo engine.

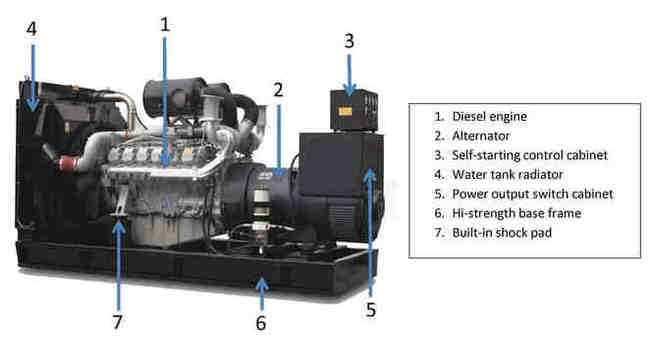

1. Powered by Doosan Diesel engine
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system, ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard.
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE
Doosan 50HZ
DOOSAN Group founded in 1896 is one of the largest consortium in Korean currently.Doosan Engine is established after the acquisition of Daewoo Integrated Machinery Co., Ltd in 2005, named Doosan Engineering Machinery, and continue todevelop and launch a new generation product with first class and reliable performance base on the original Daewoo engine.
1. Powered by Doosan Diesel engine
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system, ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard.
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE
Doosan 50HZ
|
Genset Model |
Prime / Standby power |
Engine model |
Fuel consumption L/h |
Cylinder |
Displacement (L) |
Genset Dimension (mm) |
Weight (kg) |
|
| KVA | KW | |||||||
| KGD15 | 15/17 | 12/13.2 | SP173NA | 24.0 | 3L | 1.6 | 1170×500×1000 | 434 |
| KGD18 | 18/20 | 14.5/16 | SP224NA | 24.0 | 4L | 2.2 | 1290×500×1000 | 494 |
| KGD25 | 25/28 | 20/22 | SP244TA | 24.0 | 4L | 2.4 | 1450×630×1120 | 772 |
| KGD60 | 60/66 | 48/53 | DB58 | 13.6 | 6L | 5.8 | 2000×730×1150 | 900 |
| KGD150 | 150/165 | 120/132 | DP086TA | 33.7 | 6L | 8.1 | 2700x1050x1570 | 1650 |
| KGD168 | 168/186 | 134/148 | P086TI-I | 35.4 | 6L | 8.1 | 2900x1100x1719 | 1750 |
| KGD200 | 200/225 | 160/180 | P086TI | 43.1 | 6L | 8.1 | 2900x1100x1719 | 1825 |
| KGD229 | 229/254 | 183/203 | DP086LA | 48.7 | 6L | 8.1 | 2900x1100x1719 | 1825 |
| KGD275 | 275/308 | 220/246 | P126TI | 58.1 | 6L | 11.1 | 3200x1150x1820 | 2200 |
| KGD300 | 300/334 | 240/267 | P126TI-II | 63.1 | 6L | 11.1 | 3200x1150x1820 | 2300 |
| KGD365 | 365/406 | 292/325 | P158LE-I | 78.7 | 8V | 14.6 | 3300x1500x1970 | 2500 |
| KGD408 | 408/468 | 326/374 | P158LE | 89.3 | 8V | 14.6 | 3300x1550x2100 | 2800 |
| KGD450 | 450/495 | 360/396 | P158LE-S | 89.3 | 8V | 14.6 | 3300x1550x2100 | 2800 |
| KGD454 | 454/500 | 363/400 | P158FE | 105.1 | 8V | 14.6 | 3500x1550x2100 | 3000 |
| KGD450 | 450/511 | 370/409 | DP158LC | 99.6 | 8V | 14.6 | 3500x1550x2100 | 3000 |
| KGD500 | 500/550 | 400/440 | P180LE | 120.4 | 10V | 18.3 | 3250x1550x2160 | 3200 |
| KGD520 | 520/572 | 410/451 | P180FE | 120.4 | 10V | 18.3 | 3250x1550x2160 | 3200 |
| KGD529 | 529/583 | 423/466 | DP158LD | 115.1 | 8V | 18.3 | 3250x1550x2160 | 3200 |
| KGD575 | 575/633 | 459/506 | DP180LA | 123.6 | 10V | 21.9 | 3500x1550x2200 | 3600 |
| KGD575-II | 575/633 | 460/506 | P2222LE-1 | 148.5 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGD600 | 600/660 | 480/528 | P2222LE | 148.5 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGD625 | 625/687.5 | 500/550 | P2222LE-S | 148.5 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGD638 | 638/703 | 510/562 | DP180LB | 136.4 | 10V | 21.9 | 3550x1550x2200 | 3600 |
| KGD650 | 650/715 | 520/572 | P222FE | 148.5 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGD680 | 680/750 | 544/600 | P222LE-II | 148.5 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGD688 | 688/759 | 550/607 | DP222LB | 147.1 | 12V | 21.9 | 3530x1550x2200 | 3800 |
| KGD750 | 750/829 | 600/663 | DP222LC | 161.0 | 12V | 21.9 | 3600x1550x2200 | 3800 |
| KGD750 | 750/825 | 600/660 | P222FE-II | 175.1 | 12V | 21.9 | 3800x1550x2200 | 3900 |
Doosan 60HZ
|
Genset Model |
Prime / Standby power |
Engine model |
Fuel consumption L/h |
Cylinder |
Displacement (L) |
Genset Dimension (mm) |
Weight (kg) |
|
| KVA | KW | |||||||
| KGDS8 | 8/9 | 7.2/8 | SP103NE | 24.0 | 3L | 1.0 | 1090×500×1000 | 353 |
| KGDS15 | 15/17 | 7.2/8 | SP103NH | 24.0 | 3L | 1.0 | 1090×500×1000 | 353 |
| KGDS18 | 18/20 | 14.5/16 | SP173NC | 24.0 | 3L | 1.6 | 1170×500×1000 | 434 |
| KGDS18-II | 18/20 | 14.5/16 | SP173ND | 24.0 | 3L | 1.6 | 1170×500×1000 | 434 |
| KGDS24 | 24/26 | 19/21 | SP224NC | 24.0 | 4L | 2.2 | 1290×500×1000 | 494 |
| KGDS30 | 30/33 | 24/26 | SP244TC | 24.0 | 4L | 2.4 | 1450×630×1120 | 772 |
| KGDS69 | 69/75 | 55/60 | DB58 | 13.6 | 6L | 5.8 | 2000×730×1150 | 900 |
| KGDS100 | 100/110 | 80/88 | D1146 | 25.9 | 6L | 5.8 | 2550×900×1500 | 1350 |
| KGDS137 | 137.5/151 | 110/121 | D1146T | 25.9 | 6L | 5.8 | 2550×900×1500 | 1350 |
| KGDS188 | 188/206 | 150/165 | DP086TA | 41.3 | 6L | 8.1 | 2700x1050x1570 | 1650 |
| KGDS193 | 193/213 | 154/170 | P086TI-I | 42.4 | 6L | 8.1 | 2900x1100x1719 | 1750 |
| KGDS229 | 229/250 | 183/200 | P086TI | 50.6 | 6L | 8.1 | 2900x1100x1719 | 1825 |
| KGDS255 | 255/285 | 204/228 | DP086LA | 56.0 | 6L | 8.1 | 2900x1100x1719 | 1825 |
| KGDS313 | 313/344 | 250/275 | P126TI | 70.3 | 6L | 11.1 | 3200x1150x1820 | 2200 |
| KGDS344 | 344/385 | 275/308 | P126TI-II | 73.8 | 6L | 11.1 | 3200x1150x1820 | 2300 |
| KGDS400 | 400/444 | 320/355 | P158LE-I | 91.3 | 8V | 14.6 | 3300x1500x1970 | 2500 |
| KGDS444 | 444/510 | 355/408 | P158LE | 102.5 | 8V | 14.6 | 3300x1550x2100 | 2800 |
| KGDS490 | 490/550 | 392/440 | P158FE | 119.3 | 8V | 14.6 | 3500x1550x2100 | 3000 |
| KGDS520 | 520/576 | 416/461 | DP158LC | 111.5 | 8V | 14.6 | 3500x1550x2100 | 3000 |
| KGDS566 | 566/625 | 453/500 | DP158LD | 127.1 | 8V | 18.3 | 3250x1550x2160 | 3200 |
| KGDS578 | 578/635 | 462/509 | P180FE | 137.7 | 10V | 18.3 | 3250x1550x2160 | 3200 |
| KGDS625 | 625/688 | 500/550 | DP180LA | 140.5 | 10V | 21.9 | 3500x1550x2200 | 3600 |
| KGDS679 | 679/750 | 543/600 | DP180LB | 150.7 | 10V | 21.9 | 3550x1550x2200 | 3600 |
| KGDS750 | 750/825 | 600/660 | DP222LA | 161.7 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGDS750-II | 750/825 | 600/660 | P222FE | 175.1 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGDS794 | 794/875 | 635/701 | DP222LB | 172.7 | 12V | 21.9 | 3530x1550x2200 | 3800 |
| KGDS840 | 840/925 | 673/744 | P222LE-II | 175.1 | 12V | 21.9 | 3800x1550x2200 | 3900 |
| KGDS840-II | 840/925 | 673/744 | DP222LC | 183.2 | 12V | 21.9 | 3600x1550x2200 | 3800 |
| KGDS860 | 860/946 | 688/756 | P222FE-II | 175.1 | 12V | 21.9 | 3800x1550x2200 | 3900 |
