Doosan Series Gas Generator

Click to enlarge

NG/LNG Generator

Related Presentations
Doosan Series Gas Generator Set
DOOSAN Group founded in 1896 is one of the largest consortium in Korean currently.Doosan Engine is established after the acquisition of Daewoo Integrated Machinery Co., Ltd in 2005, named Doosan Engineering Machinery, and continue todevelop and launch a new generation product with first class and reliable performance base on the original Daewoo engine.

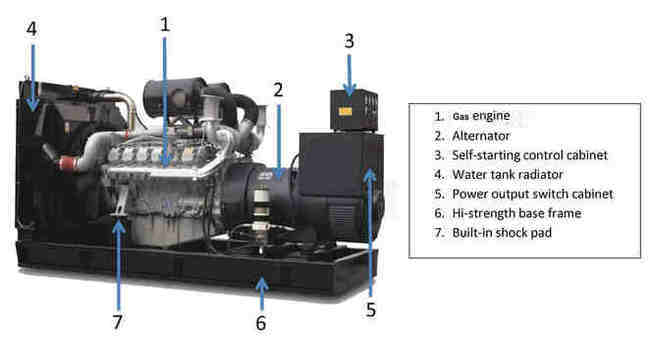

1.Powered by Doosan series gas engine
2.Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway,
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system,  ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard
Manufacturing Standard
Genset Model Prime power Engine model Gas consumption
Cylinder Displacement
Genset  Dimension
KGD140N 140 112 GE08TI 0.28 6L 8.071 2500×950×1520 1550
KGD190N 190 152 GE12TI 0.29 6L 11.051 2750×1015×1460 2170
KGD250N 250 200 GV158TI 0.29 8V 14.618 2850×1390×1820 2320
KGD320N 320 256 GV180TIR 0.29 10V 18.273 3000×1390×1820 2580
KGD375N 375 300 GV222TI 0.32 12V 21.927 3200×1400×1820 3400
