Cummins Gas Generator

Click to enlarge

NG/LNG Generator

PowerRange:
Related Presentations

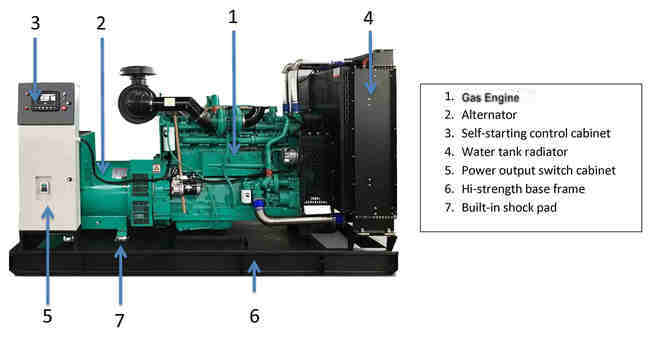

Cummins Series Gas Generator Set
Cummins Inc. is a global leader ,established in Columbus, Ind., in 1919 as Cummins Engine Company, After nearly a hundred years’ development. Now has been one of the famous largest engine manufacturer in the world. Cummins established joint venture company in China, Dongfeng Cummins Engine Co.,Ltd. ,supplying B, C and L series;Chongqing Cummins Engine Company Ltd. Supplying M, N and K series.
1.Powered by Cummins gas engine
2.Equipped with famous Brushless alternator – Optional Stamford, Leroy-Somer, Marathon, Mecc alte, Kingway,
3. Equipped with optional controller system , Deep sea, ComAp , Smartgen
advanced generator set control system,  ATS system, remote control system, parallel operation system.
4. Radiator 40C max, fans are driven by belt, with safety guard
Manufacturing Standard
ISO8528,GB/T2820,ISO9001,ISO14001,CE

Genset
Model
Prime / Standby
Power
Engine model Bore×Stroke
(mm)
Cylinder Displacement
(L/h)
Compression ratio Alternator
KVA KW
KGC38N 38/41 30/33 B3.9G-G45 102×120 4L 3.9 10.5:1 KAI38
KGC63N 63/70 50/56 B5.9G-G100 102×120 6L 5.9 10.5:1 KAI63
KGC100N 100/110 80/88 B5.9G-G100 102×120 6L 5.9 10.5:1 KAI100
KGC125N 125/140 100/112 C8.3G-G145 114×135 6L 8.3 10.5:1 KAI125
KGC150N 150/165 120/132 C8.3G-G145 114×135 6L 8.3 10.5:1 KAI150
KGC188N 188/206 150/165 L8.9G-G176 114×145 6L 8.9 10.5:1 KAI188
KGC250N 250/275 200/220 NT855G-G240 140×152 6L 14 11:01 KAI250
KGC313N 313/343 250/275 LYK19G-G280 159×159 6L 18.9 11:01 KAI313
KGC375N 375/413 300/330 LYK19G-G330 159×159 6L 18.9 11:01 KAI375
KGC500N 500/550 400/440 LYK38G-G440 159×159 12V 37.7 11:01 KAI500
KGC625N 625/688 500/550 LYK38G-G550 159×159 12V 37.7 11:01 KAI625
